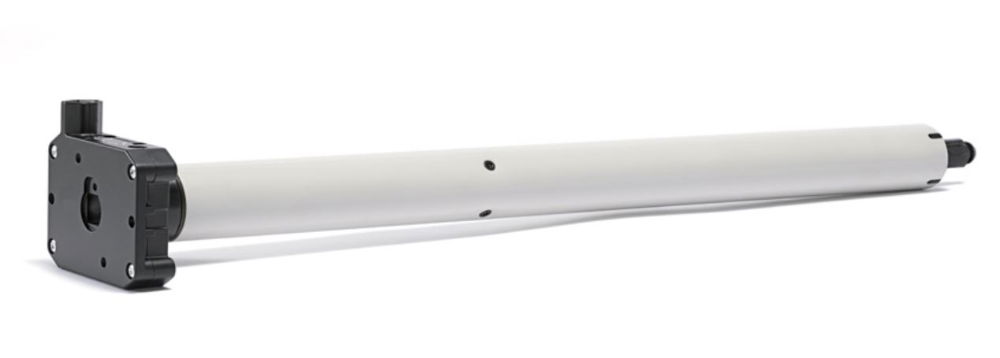

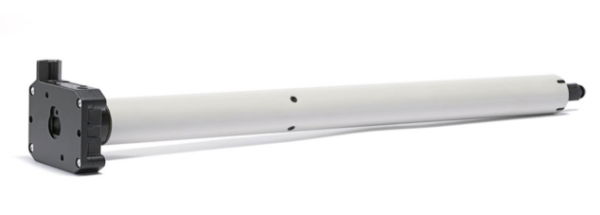

30Nm, 14rpm tubular motor, wired & emergency crank handle (handle sold separately)
Tubular drives with emergency crank handle
Mechanical limit switches, min. shaft size Ø = 50 mm, noiseless soft brake up to 20 Nm, NHK operation with 7 mm hexagonal and 6 mm square shaft
In an emergency, e.g. in the event of a blackout, tubular drives with emergency manual operation enable the roller shutter or door to be opened with a hand crank.
All Elero Revoline tubular motors (35mm, 45mm, 58mm Round Head) come with a 2m power cable.
This cable MUST be ordered separately:
E990004101 - white
E990005101 - black
If one of these codes is not included in the order, then no cable will be supplied.
Other cable lengths are available in white or black - please call for price & availability or search E99000 in the search box.
Mounting kit - EL-231620201
