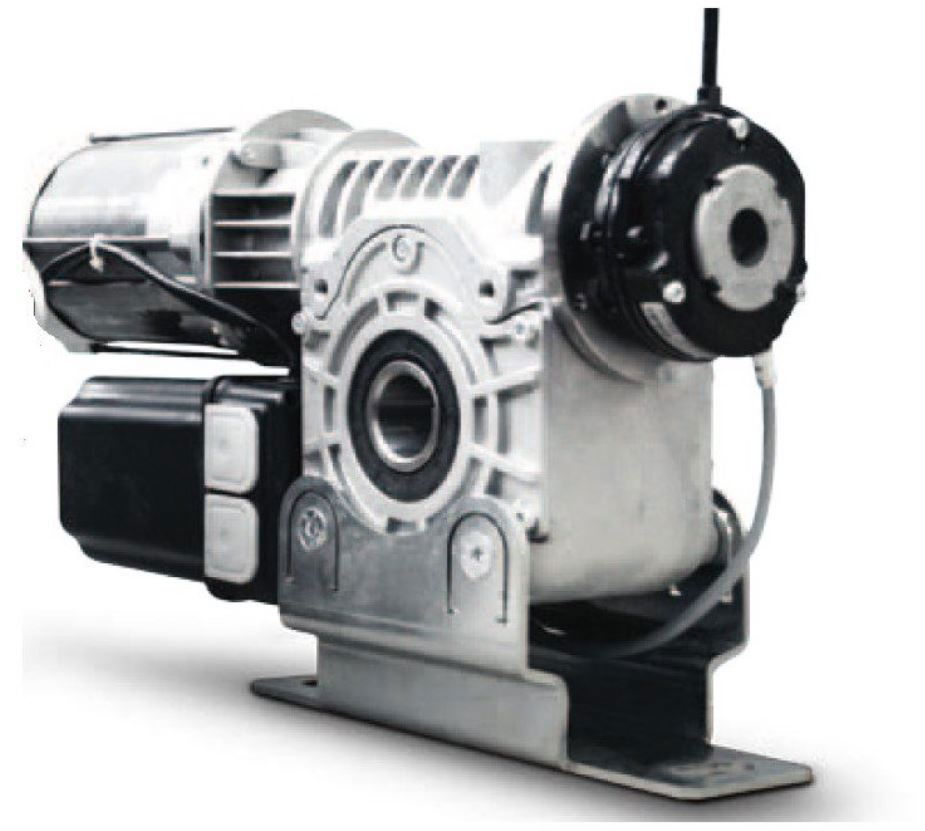

Gaposa Rapido 90Nm, 90rpm, 25mm shaft, digital limits

Stock Code: GLP9090VTME

OEM Part No: LP9090VTME

£879.91

Quantity: Please allow 10-15 working days

Add to Basket

Description

90Nm, 90rpm Rapido with an electromagnetic brake and an integrated safety brake. Rapido is a Three phase motor, ideal for the rapid doors' market. All models are provided with an electromagnetic brake, which stops suddenly the inertia of the motor, and an integrated safety brake. Digital limits with Absolute encoder. No readjustment after power failure necessary if a control unit with inverter is used. OVERLOAD SAFETY FACTOR Motor overload safety factor = 4 x the nominal motor amperage because the starting current of the Rapido can reach these levels for short periods. MANUAL OPERATION Rapido is supplied with hand crank for manual operation when power cuts off. 230V only Requires GASOR43 to reduce 40mm to 30mm

Also need a GQC600S - control unit inverter

All sold separately
