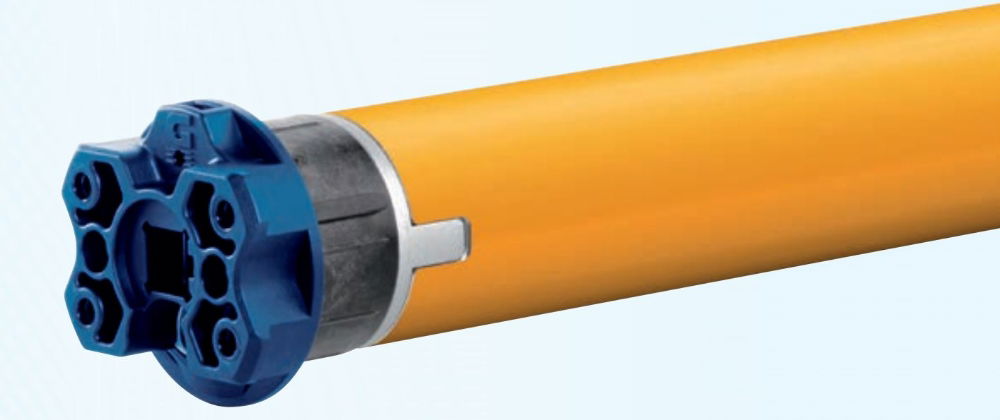

10Nm, 16rpm COM head - Electronic tubular motor Ø 45 mm
For Roller Shutters
Characteristics:
Delayed teach-in
The motor learns its actual end positions only during the fifth driving cycle.
Soft position
The hanging stops before reaching the upper end position to protect the materials.
Synchronous position
Even with different curtain widths or heights, a constant switch-off pattern is always guaranteed.
No more differently hanging rolling shutters in the upper end position.
Plug & Play
Autonomous detection of the end positions without time-consuming adjustment work in the Installation procedure.
Done in only one UP and DOWN movement (when used with stoppers and anti-lift devices).
Cable not included - basic standard 2m cable with Geiger Plug & open end must be ordered separately or not cable will be supplied. Add GM56E396 to order. Other cables available upon request.
