Spindle stops
Application: Venetian blinds with 25 mm head rail (e.g.: 25 x 25 mm)

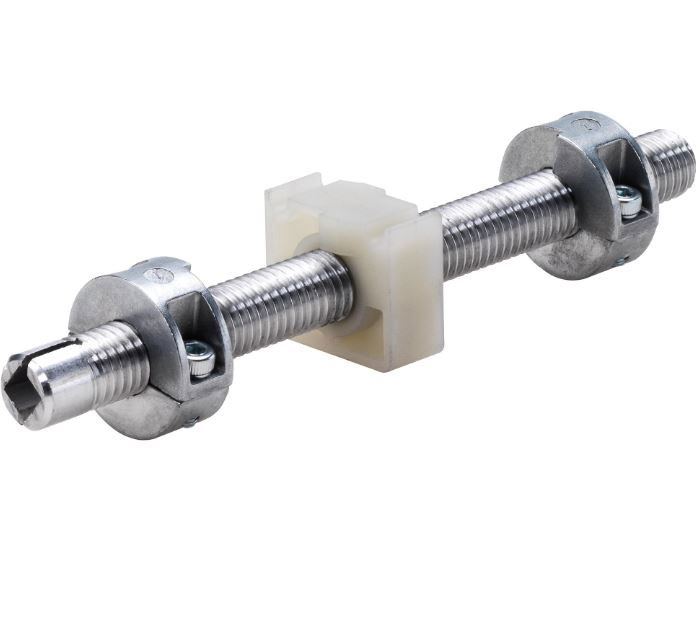

Spindle lock made of aluminum
Application: Venetian blinds and external venetian blinds with 25 mm upper box
Driven by reversible rod inner profile square 5 mm
Limits the upward and downward movement of the blind, thereby preventing damage in the event of improper operation
Two variable adjustable end stops
Maximum 50 revolutions from lock to lock
Maximum stop torque 2.5 Nm with a tightening torque of the stop screws of 1.5 Nm
Spindle made of aluminum; die-cast zinc stops; Plastic barrel nut
Stainless steel
Note: only manual operation tested.
Note
Recommended for gear G429F031, G429F033
Only suitable for manual operation
Operation with third-party products and electric drives must be tested by the customer
For alternative variants please see Downloads
