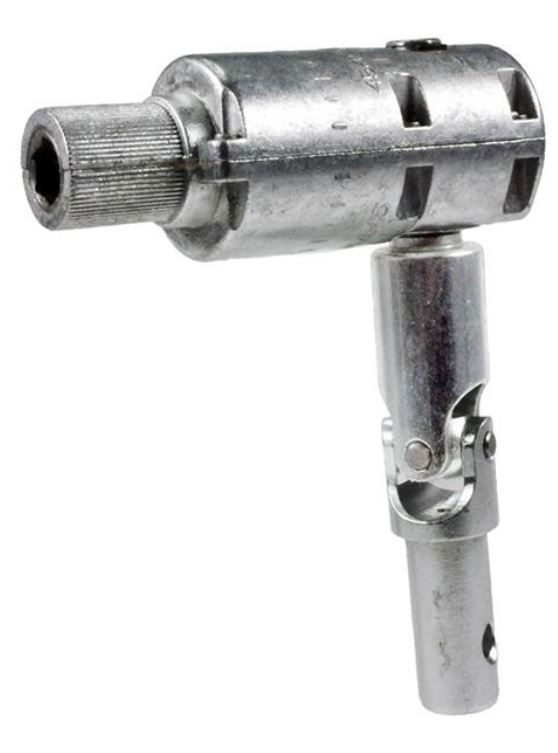

Bevel gear 1:1
6.8mm trunnion universal joint in, 5mm Sq out
Application: Venetian blinds with 25 mm head rail, left side installation
Maximum output: 0.75Nm, Ratio: 1:1, Efficiency: 0.67
Features
Diecast zinc housing
Insertable interior profile at input shaft, enabling use of just one gear model for same direction of rotation whether installed on left or right
Alternatively available with pre-mounted universal joint
Without end stop
Matching gear holder G429F100
Available in other models & variants - see Downloads
