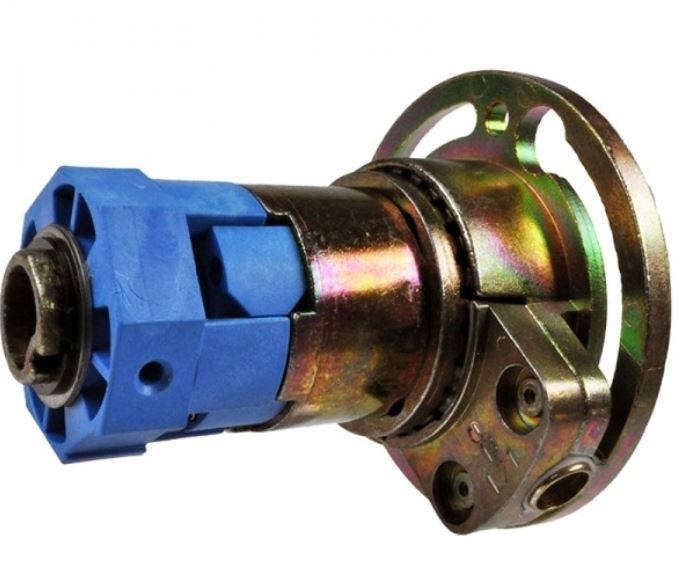

Bevel gear 4:1
6mm square input, 36.7mm round rod output
Maximum output: 12Nm, Reduction ratio: 4:1, Efficiency: 0.85. Free wheel left
Features
Easy to operate due to free-wheel brake spring
Insertable interior profile at the drive
Left-hand and right-hand design for the same direction of rotation when installed on the left or right The free-wheel prevents the shutter curtain from being rolled up incorrectly
Tested according to DIN EN 14201
For alternative variants please see Downloads
