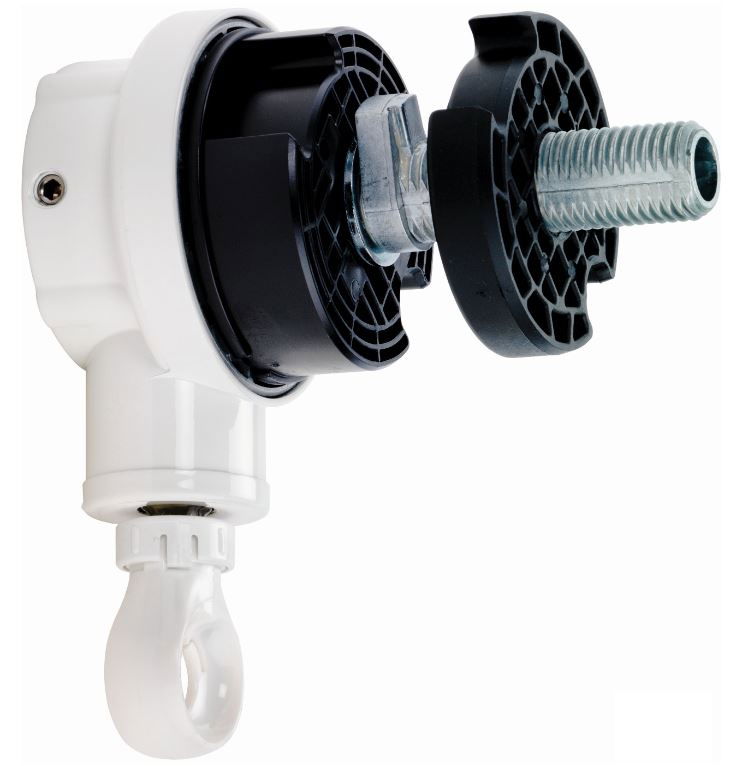

Bevel gear 4.4:1
Eyelet input (RAL9016), Ø 75.5mm output
Maximum output: 16Nm, Reduction ratio: 4.4:1, Efficiency: 0.66. Free wheel left, adjustable
Application: Large folding-arm awnings
Characteristics
Bevel gear with integrated free-wheel
Can be inserted directly in the roller tube
Variably adjustable end stop that can be set from the outside from 0 up to 20 rotations
Exact positioning of the end stop down to 10 mm / 15°
Available as right and left side version
Special version up to 50 Nm on request
Bores for screws M6 (pitch circle 48 mm) and M8 (pitch circle 60 mm)
Note
Colours and drive shafts on request
This GEIGER awning gear is available with oval zinc eyelets, oval or round plastic eyelets in different RAL colours
For alternative variants please see Downloads
