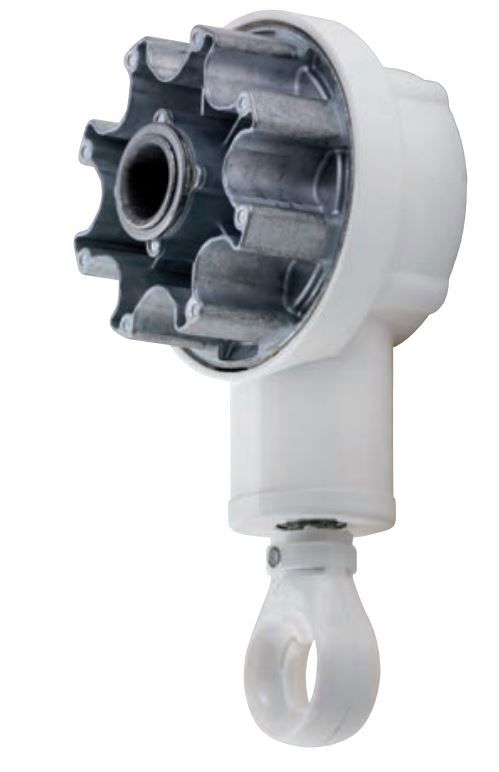

Bevel gear 7.8:1
Maximum output: 22Nm, Reduction ratio: 7.8:1, Efficiency: 0.50
Zinc eyelet input, Ø 66.5mm output
Application: Large folding-arm awnings
Characteristics
The strongest bevel gear for awnings made by GEIGER
Can be inserted directly in the roller tube
With end stop after max. 14 rotations (available also without end stop)
Bores for screws M6 (pitch circle 48 mm) and M8 (pitch circle 60 mm)
Note
Colours and drive shafts on request
This GEIGER awning gear is available with oval zinc eyelets, oval or round plastic eyelets in different RAL colours
For alternative variants please see Downloads
