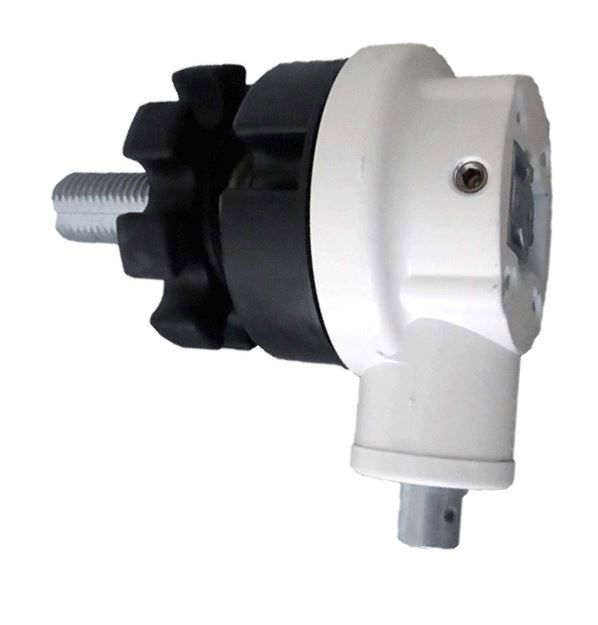

Geiger Modular Bevel Gearbox 4.4:1 10mm trun in, Ø 82.5mm out
Free wheel right (seen from the outside)
The bevel gearbox from GEIGER has a sturdy closed housing, good efficiency and safe self-locking. A hardened and ground brake cylinder, in conjunction with a spring steel brake spring, guarantees durable, wear-free braking performance. The gearbox has an integrated freewheel. The end stop can be variably adjusted from the outside. Depending on the setting, the gearbox locks after a maximum of 20 revolutions on the cloth shaft; incorrect winding of the awning fabric is thus prevented.
Due to the small reduction ratio, fast operation is possible. The gearbox can be inserted directly into the groove tube.
