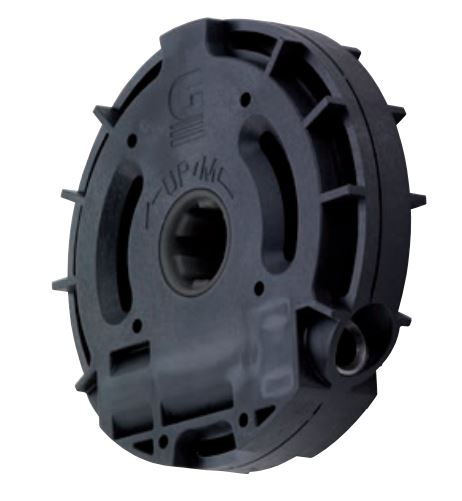

Worm gear 5,7:1, with end stop
Maximum output: 8Nm, Reduction ratio: 5.7:1, Efficiency: 0.36
7mm hex input, 16mm star output
Features
Integrated double-sided overload protection system on the drive-side allows optimized protection of the whole device
With or without end stop
One design for left-hand or right-hand installation
Continuous interior profile at drive and output
Can also be mounted in hand caps with bearing journals
Universally applicable due to adapter systems
Housing made out of high-strength plastic
Worm and worm wheel made out of plastic
Matching tube drive G419F9..
For alternative variants please see Downloads
