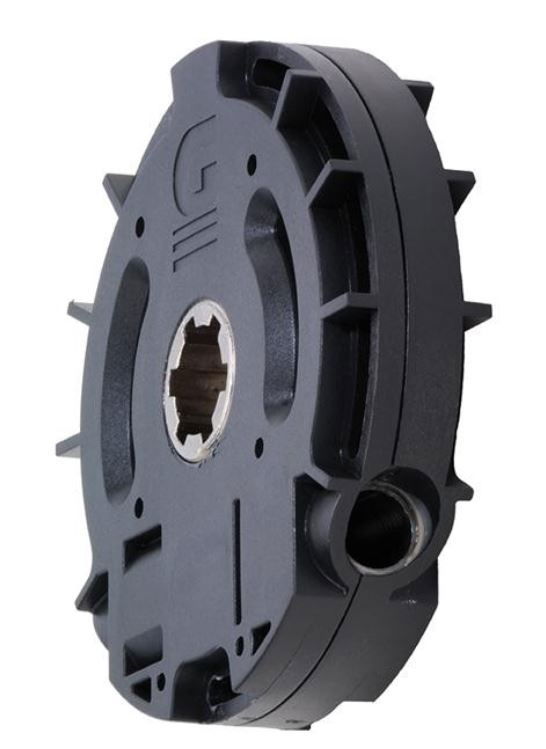

Worm gear 6:1, with end stop
Maximum output: 8Nm, Reduction ratio: 6:1, Efficiency: 0.46
8mm Square input, 16mm star output
Features
With or without end stop
One design for left-hand or right-hand installation
Continuous interior profile at drive and output
Housing made out of high-strength plastic
Hardened steel endless worm and diecast zinc worm wheel
Universally applicable due to adapter systems
Can also be mounted in hand caps with bearing journals
Matching free-wheel and cap G419F9..
For alternative variants please see Downloads
