Worm gear 6:1
Application: Pivot-arm awnings, marquisolettes, small folding-arm awnings
Maximum output: 8Nm, Reduction ratio: 6:1, Efficiency: 0.34
Without End Stop
9.9mm trunnion input, 7mm square output

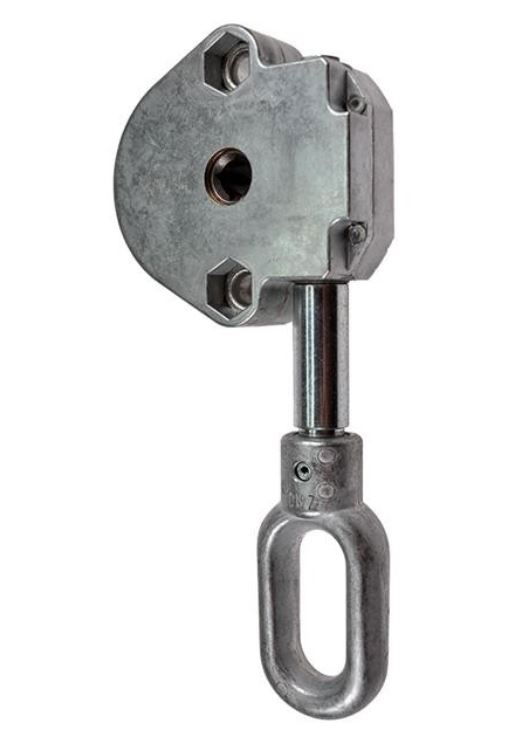

Image is illustrative only. Actual gearbox with plastic round eye, white.
Characteristics
The small power package: high performance with minimal gear dimensions
With end stop after max. 19 rotations (available also without end stop)
Continuous interior profile at drive and output
Extensions on request
Note
Colours and drive shafts on request
This GEIGER awning gear is available with oval zinc eyelets, oval or round plastic eyelets in different RAL colours
For other variants please see Downloads
