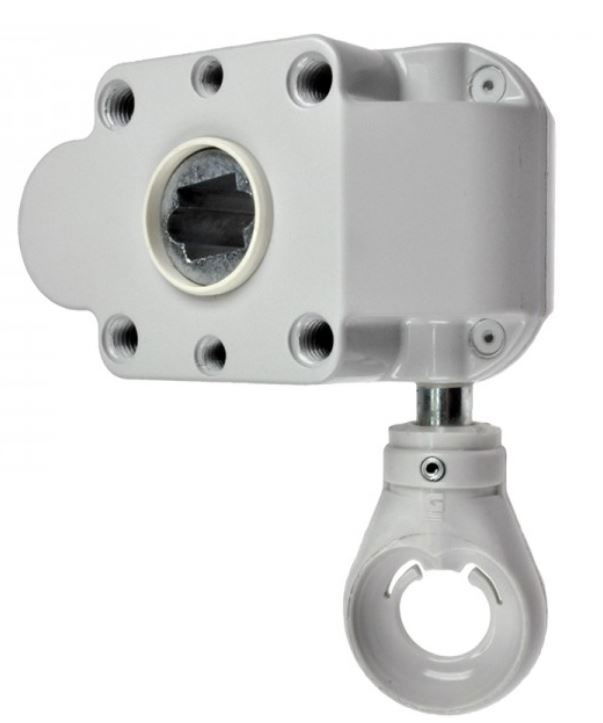

Worm gear 7:1
Application: Folding-arm awnings, pivot-arm awnings and window awnings
Maximum output: 20Nm, Reduction ratio: 7:1, Efficiency: 0.44
With End Stop, With Eyelet
Eyelet (RAL7035) input, 13mm square output
Characteristics
Available with/without casing collar
With end stop after max. 15 rotations (also available without end stop)
Note
Colours and drive shafts on request
This GEIGER awning gear is available with oval zinc eyelets, oval or round plastic eyelets in different RAL colours
For other variants please see Downloads
