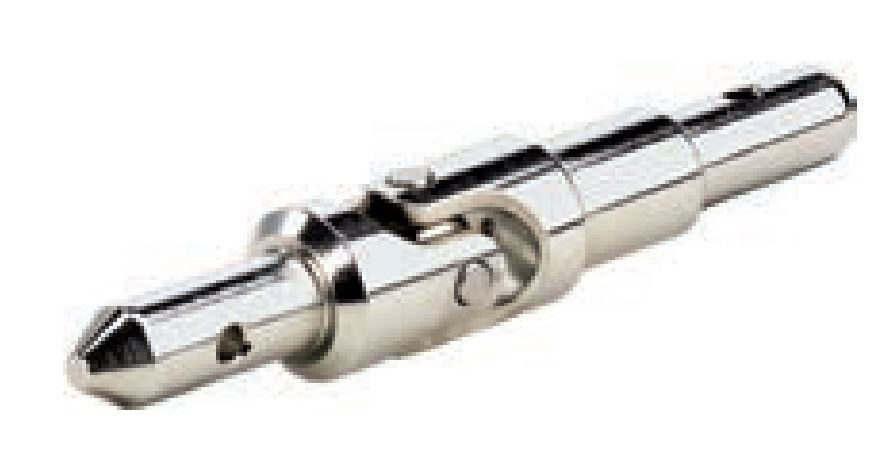

Universal joints (Cardinal Joint)
Application: Connection of coupled systems with angular displacement
9.9mm trunnion in, 10mm round out
Characteristics Max. torque: G813F131- 2 Nm, G816F002 - 3 Nm, G818F200 - 5 Nm, G820F068 - 6 Nm
Universal joints made of steel, hardened type on request
Various connecting pieces available
Surface either zinc-plated or bright nickel-plated
Max. deflection 45°
For other variants please refer to the Downloads section of this product.
