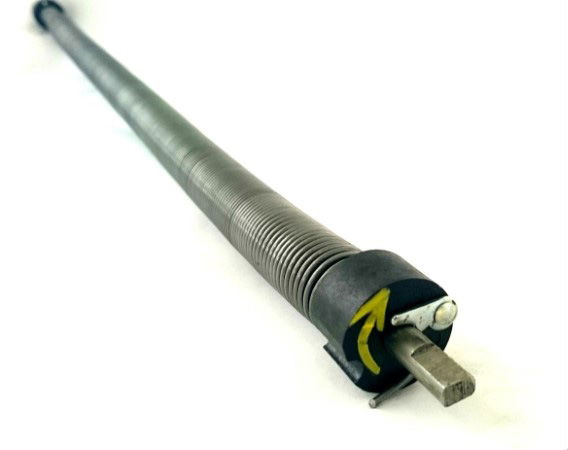

Hopkins 1.25" Spring Assembly
14g spring - 36" long
For use in medium to heavy duty blind applications: PVC screens, blackout fabrics, etc.
This product fits AT12S 4" 1.25" grooved tube available in 4 m lengths.
For idle end use HOP1082C12 1.25" Compression Dummy Spindle Suitable brackets are available. To suit this spring assembly HOP1030T 5" 'T' Strap Bracket
1.25" (32mm) Diameter
36" (381mm) Long
Maximum Turns for Spring: 14
Maximum Torque at Turns: 2.20Nm
Weight Lifted: 4.90Kg
Maximum Turns for Spring: 40
Maximum Torque at Turns: 2.22Nm
Weight Lifted: 4.95Kg
